Description

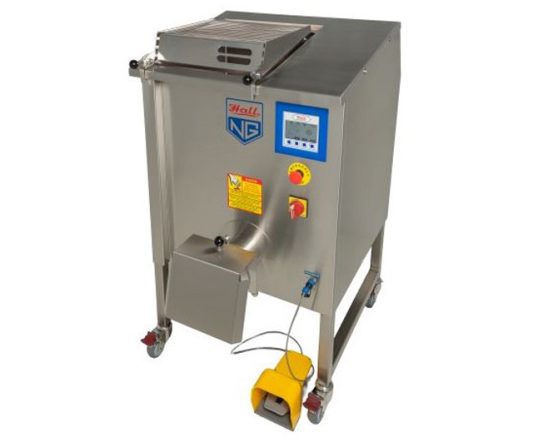

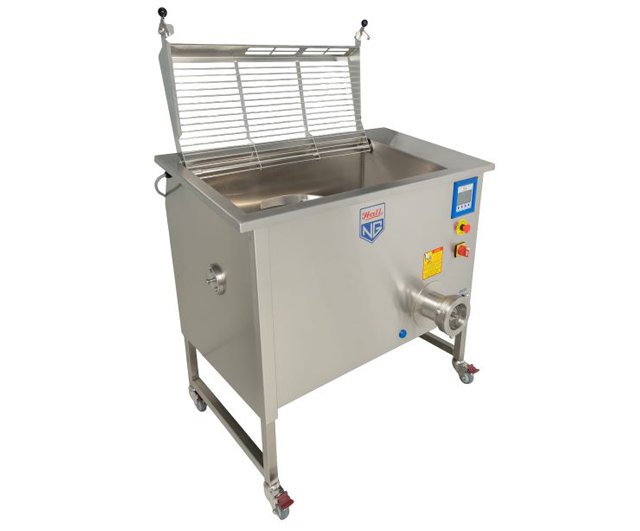

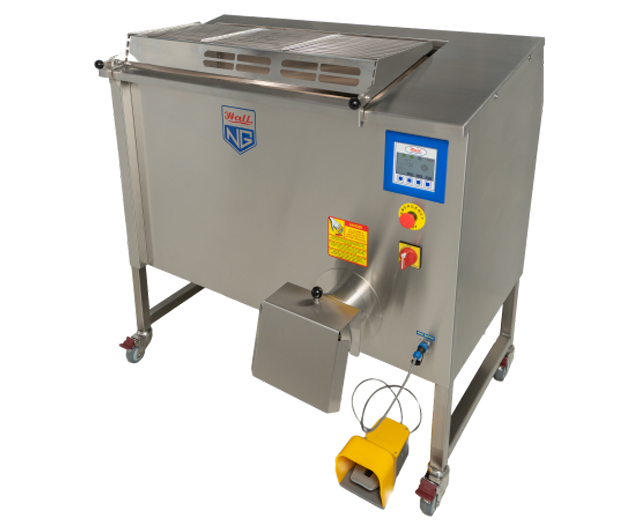

Robust and hygienic body. Strong side walls (tub ends) with 4 mm thick stainless steel. Polished stainless finish inside tub and exterior (not bead-blasted). Easily removable mixing paddle and mincing components. Easily moveable on 4 heavy duty stainless steel lockable swivel castors.

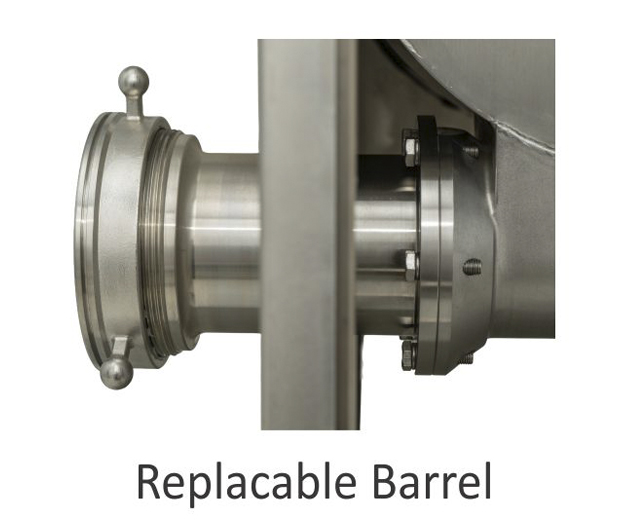

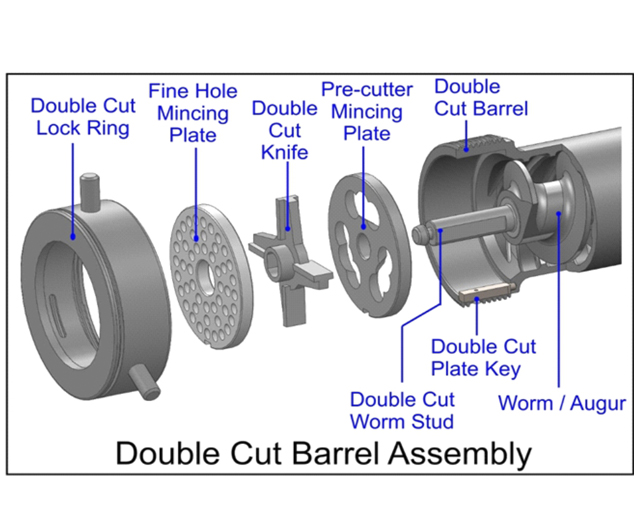

Cutting head. Redesigned with 60% higher throughput than previous Hall mincer mixers. Enterprise #42 cutting system as standard with E130 double-cut barrel as an option. The barrel can be removed for replacement, upgrade, or to allow easy movement of the machine through narrow doorways.

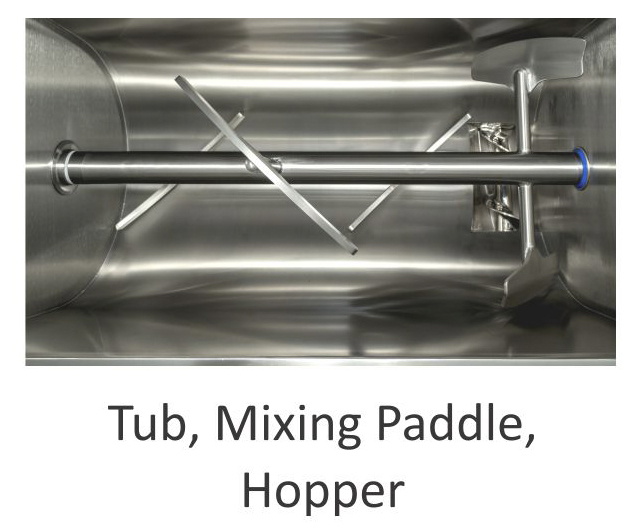

Mixing paddle. Strong construction for mixing and efficient design for feeding the product into the hopper for mincing. Heavy duty paddle bearing. Easy replacement of paddle bearing and drive shaft seal.

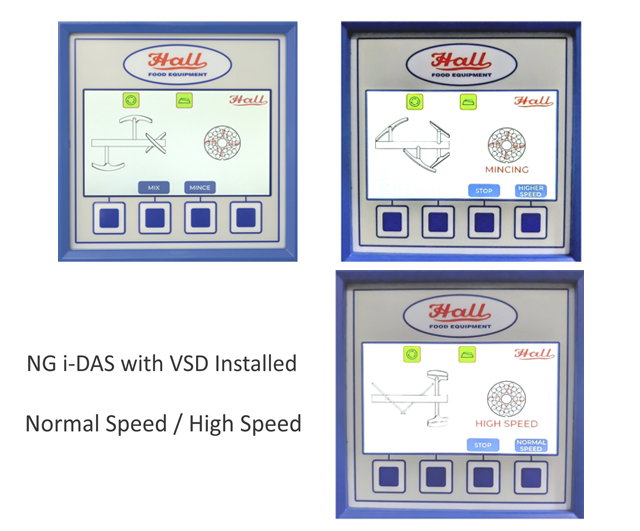

i-DAS operating system. Full colour 4.5″ LCD screen with animation for intuitive operation. Automatic alternation of mixing direction with a timer to adjust the overall cycle duration. Status monitoring of safety interlocks, emergency stop switch, foot switch, and contactors, and electrical fault detection for quick troubleshooting.
Category 3 safety compliant. Signal circuitry at 24V for extra safety. Built-in motor overload protection. Isolator switch and emergency stop switch located at the front of the machine, close to the operator.
Speco Triumph mincer plates and knives. Includes as standard a 3 mm, 5 mm, and 8 mm hole plate, one complete knife holder, and a spare insert blade. Click here to learn more about the Speco Triumph knife holder.
Generous inclusions. In addition to the Speco Triumph cutting tools, you will get a Vikan cleaning brush, a worm puller, a splatter guard, a spanner, and a spare worm stud.

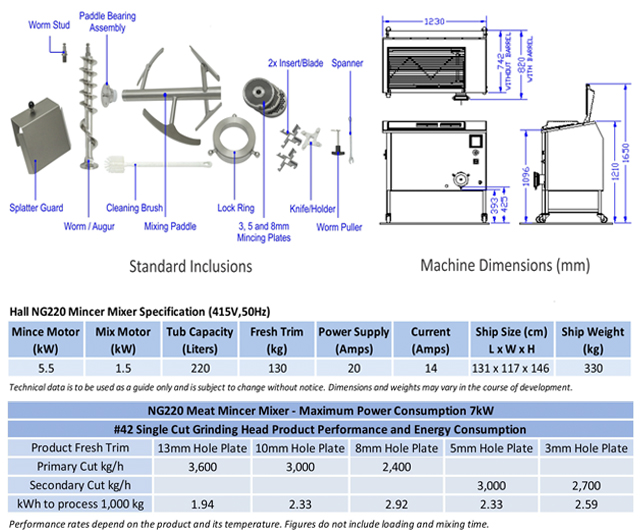

- 220 litres tub volume
- 130 kg mixing capacity (fresh trim)
- Up to 3,600 kg/h primary cut with 13 mm plate
- Up to 3,000 kg/h secondary cut with 5 mm plate
- Three-phase: 5.5kW mince + 1.5kW mix gearmotors

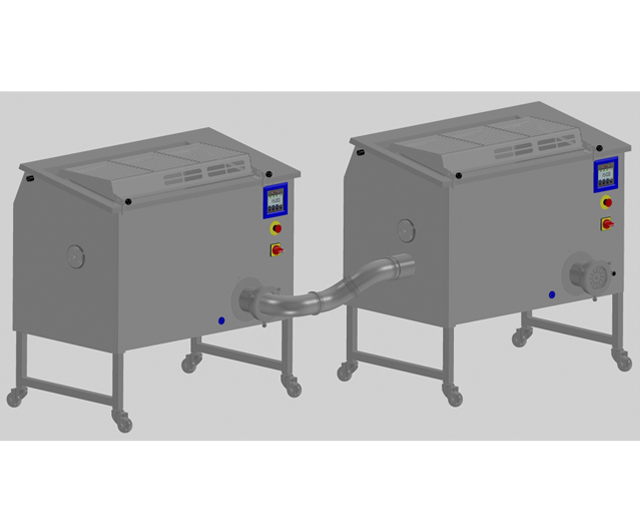

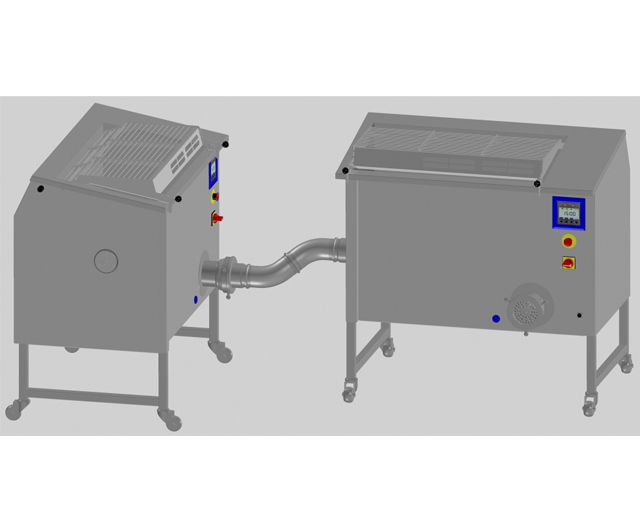

Tandem system. Connects two Hall NG220 machines via a transfer tube, enabling a first-grind to second-grind or mix without manual handling. Available in a right-angle layout or parallel layout to suit your space and workflow. Tandem systems minimise exposure to air and lowers risk of contamination.

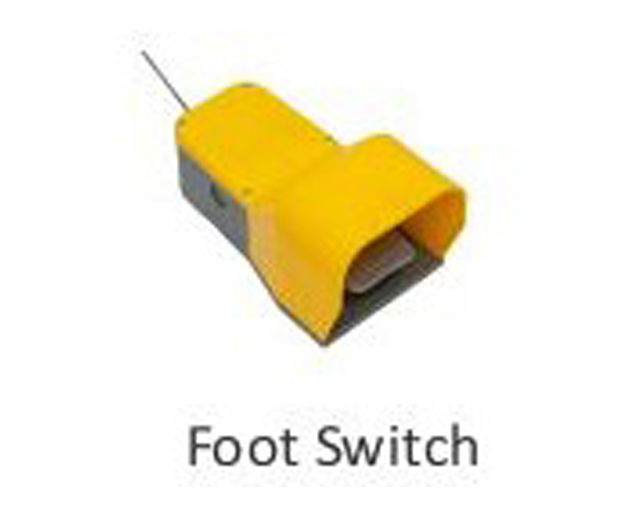

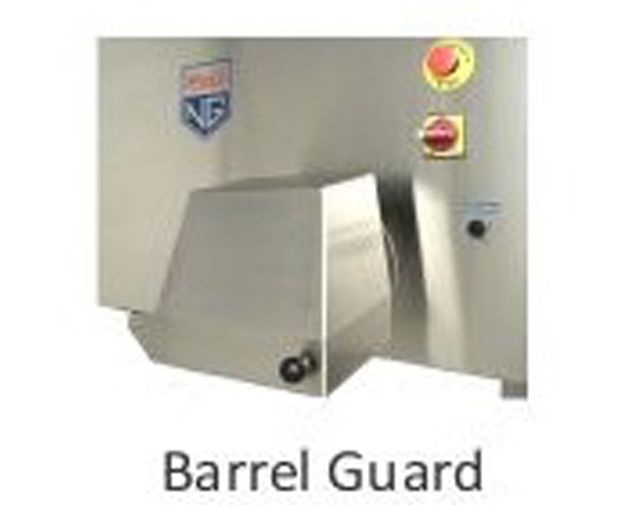

Optional extras. Barrel guard with safety interlock switch (can be retrofitted)  |  Foot switch (plug and play: the machine is already fitted with a socket)  |  Insulation around the tub (at time of order)  |  Gristle extraction system  |  Mincer hole plates from 2 mm up to 25 mm  |  Spider plate to empty the tub without mincing  |  Change in machine height (at time of order)  |  Levelling pads instead of castors  |  Variable speed drive for high-speed secondary cut  |  Tandem system.
